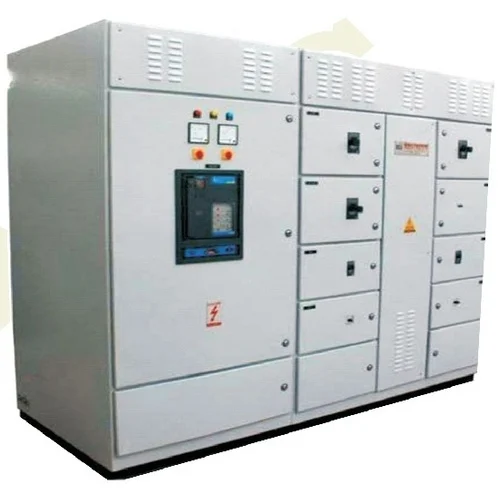

High Tension Control Panels

HT panel is a metal enclosure fitted with HT Circuit Breakers, relays & metering that is used to receive 11KV/33KV supply (from one or more source) & distribute the power through its outgoing feeders. Outgoing feeder may be one or more it depends on the load of the building. Full form of HT panel is High Tension Panel. It is installed in Electrical substations of Commercial complexes, residential colonies, factories, schools, hospitals etc. to receive & distribute HT supply.

HT panel in electrical system is a switching point where HT supply can be connected or disconnected with load. HT cables are connected to circuit breakers from incoming side & outgoing side also. HT supply can be switched on or off by operating electrically operated switch (or by using push button of the breaker). When supply is ON, metering system starts measuring/recording electrical parameters (depending on the panel design).
